Product Description

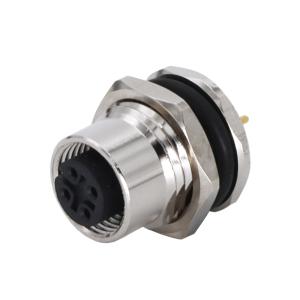

M12 panel mount connectors have 3/4/5/8/12 pole female circular panel mount socket featuring a metal body and IP67 protection rating. The socket features an M12 thread and 4A current rating, PCB contacts termination.
Technical Data
| Standard | IEC 61076-2-101 |
| Contact nut material | Brass, nickle-plated |
| Contact surface material | Brass, gold-plated |
| Contact carrier material | PA, black |
| Housing material | TPU, black |
| Seal material | FPM/FKM |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Pollution degree | 3 |
| Ambient temperature | -25~+85℃ |
| Mating cycles | >100 |
| Degree of protection | IP67 |
| Pin assignment | Mounting type | Coding | Rated current | Voltage | Cable outlet | Contacts termination | Part No. |
| Front mounting | A | 4A | 250V | Straight | PCB version | M1204F-PF/M16 |
