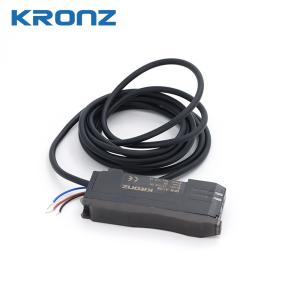

China High-Speed Fiber Optic Amplifier NPN/PNP Selectable Output 50μs Response Time Timer Function 12-24VDC Input wholesale

High-Speed Fiber Optic Amplifier NPN/PNP Selectable Output 50μs Response Time Timer Function 12-24VDC Input

Name: HighSpeed Fiber Optic Amplifier NPNPNP Selectable Output 50μs Response Time Timer Function 1224VDC Input
Brand: KRONZ
Price: 1 USD

Ask Latest Price

Video Channel

Brand Name :KRONZ

Model Number :BFH-A10N

Certification :CE

Place of Origin :Guangdong, China

MOQ :1

Price :Negotiable

Payment Terms :T/T,Western Union,MoneyGram

Supply Ability :10000 pieces per month

Delivery Time :5-8 working days

Packaging Details :Polybag packing

Indicator :LED

Housing Material :Polycarbonate

Light Source :Red LED

Countrol Output :NPN

Wavelength :630nm

Power Consumption :＜ 870 mw

Ambient Temperature :-20℃ to +55℃

Ambient Humidity :35 to 85%RH

Contact Now

Add to Cart

View Product Description

Industrial Fiber Optic Sensor Amplifier | 630nm Red LED | Ultra-Fast 50μs Response | Light/Dark Mode (LIGHT ON/DARK ON) | 4-Channel Mutual Interference Prevention

Product Description

Multi-Function Digital Fiber Optic Amplifier for Precision Detection | NPN/PNP Output (300mA/100mA) | Delay Timer & Real-Time Settings | Robust PC Housing for Industrial Automation

Ultra-Fast Response Time (50μs, 250μs, 500μs, 1ms Selectable), 630nm Red LED Light Source, High Immunity to Ambient Light (Sunlight 30,000 lux).Selectable NPN/PNP Output (Max 300mA/100mA), Configurable Light-On/Dark-On Mode via Switch.Multi-Mode Timer (Delay On/Off, One-Shot, etc.), Real-Time Function Setting (Two-Point Threshold, Auto/Manual, Key Lock).

NPN	BFN-A10N
Countrol Output	NPN: External voltage: below 30V DC (between detection output and 0V); maximum output current: 300mA; residual voltage: below 2V
Timer Function / Range	Delay off, delay on, one-shot timer, on/off, on one-shot; adjustment range: 1–9999 ms
Rated Value	NPN: Typical: Maximum 900 mW (max 32 mA at 24V; max 47 mA at 13V
Mutual Interference Prevention	F0,F1,F2,F3Four-channel interference suppression
