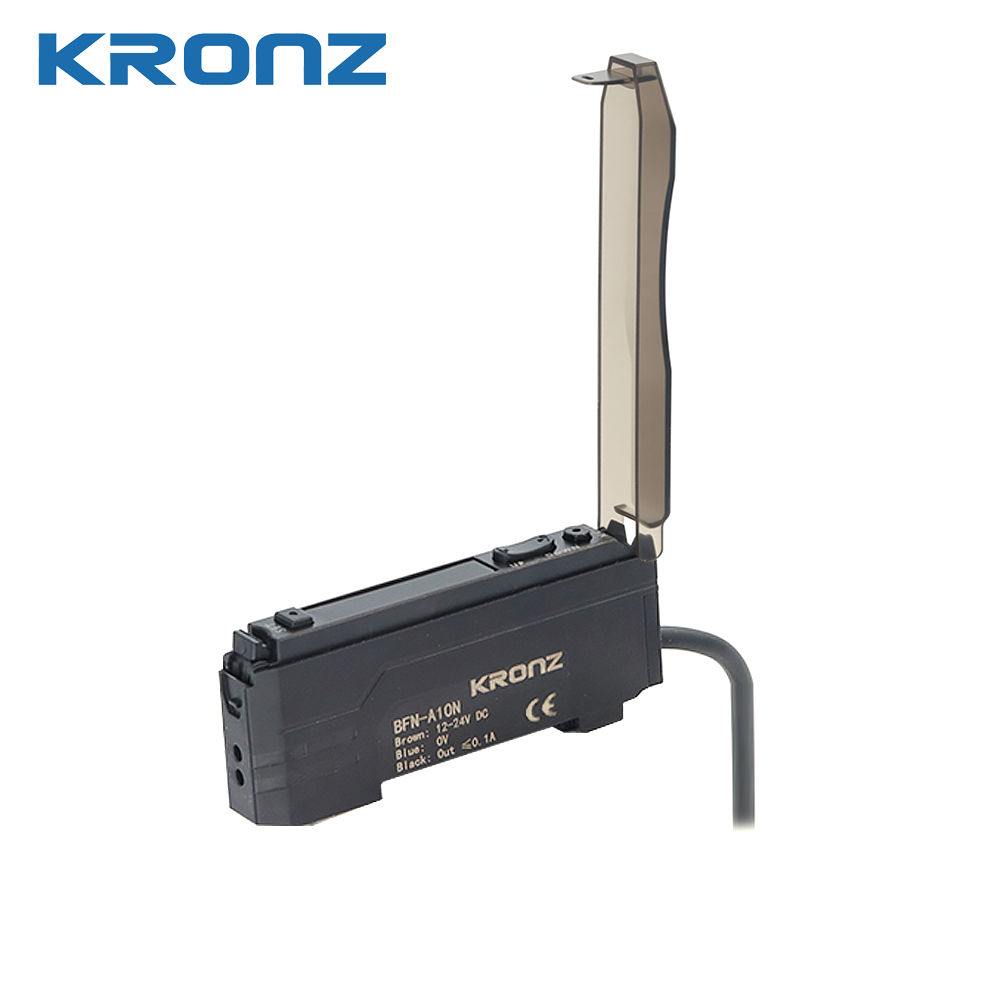

Discover our state-of-the-art digital fiber optic sensor amplifier designed for precision industrial applications. Featuring revolutionary smart adjustment technology and dual digital displays, this sensor delivers unmatched performance and ease of use in demanding environments.
Key Features:
• Smart One-Button Setup - Complete configuration with just a single button press
• Dual Digital Display - Real-time monitoring and enhanced operational capabilities
• Intelligent Power Adjustment - Automatically regulates light emission without compromising response time
• Ultra-Fast Response - Selectable response times from 50μs to 1ms for various applications
• PNP Output - Maximum 100mA output current with below 2V residual voltage
• Advanced Protection - Comprehensive circuit protection including reverse polarity, surge, and overcurrent protection
| NPN | BFN-A10N |
|---|---|
| Countrol Output | NPN: External voltage: below 30V DC (between detection output and 0V); maximum output current: 300mA; residual voltage: below 2V |
| Timer Function / Range | Delay off, delay on, one-shot timer, on/off, on one-shot; adjustment range: 1–9999 ms |
| Rated Value | NPN: Typical: Maximum 900 mW (max 32 mA at 24V; max 47 mA at 13V |
| Mutual Interference Prevention | F0,F1,F2,F3Four-channel interference suppression |
